点云三维重建 PolyFit算法解析与改进(八)

摘要:
CGAL面片合并;模型导出。

模型面片合并

这部分是一个收尾工作,旨在把上节得到的模型整理打扮下,尽量把近似同一平面系数的细碎面片合并为一整块,既简化模型面数也能提升可视化结果。程序封装在ReconstructProcess::MergePlane(),思路是先取到近似同平面系数的相邻面,再执行合并操作。函数的第一部分,通过CGAL的半边与对偶半边关系,取出model的两个相邻面,然后按自己的理解增加两个判断条件(可能有误),第一个判断避免出现“内嵌面”,可以想象成一个完整的饼被从外往内部重心切了一刀,这个多边形的内部就可能存在一个多余的边结构,以该边获取的对偶面就会是两个一样的面;第二个判断是避免取到模型的边界边,不过理论上model已是一个闭合的多边形网络,不太理解为何当时要多此一举,当做多加层保险吧。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
FT theta = cos(static_cast<FT>(CGAL_PI * 15.0 / FT(180.0)));//阈值_向量的内积(余弦值),大于该值则两平面近似平行

bool merged = false;//是否有平面被合并
do
{
merged = false;

//1、遍历model中的边,选取两个邻近的面进行判断
std::vector<Polygon_mesh::Halfedge_index> index_halfedges;//容器_model的半边集下标
for (Polygon_mesh::Halfedge_index e : model.halfedges())
index_halfedges.push_back(e);

for (int i = 0; i < index_halfedges.size(); ++i)
{
if (CGAL::is_border_edge(index_halfedges[i], model))
continue;//边为多边形上的边界边,跳过

//获取model的一个半边及其相应的面
Polygon_mesh::Halfedge_index h1 = index_halfedges[i];
Polygon_mesh::Face_index face1 = model.face(h1);
//获取对偶半边和相应的面
Polygon_mesh::Halfedge_index h2 = model.opposite(h1);
Polygon_mesh::Face_index face2 = model.face(h2);

if (face1 == face2)
continue;//相邻面为同一个面,跳过

if ((!model.is_valid(face1)) || (!model.is_valid(face2)))
continue;//相邻的任一个面不存在,跳过


//2、计算两个平面的正交向量并归一化
//...
}

} while (merged);//merged 若为false,则此时所有平面都不适合被合并,跳出循环

第二部分参考HypothesisPlaneProcess::PlaneRefine(),计算俩平面的法向量,向量内积后得到两者间的夹角,大于角度阈值的两者平面系数近似,调用 CGAL::Euler::join_face()将两个相近面片合并,且若本轮循环中发生过合并操作,跳出内部循环并重新遍历所有半边。一直迭代直至不再发生合并操作,完成模型的面去冗处理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
//2、计算两个平面的正交向量并归一化
//拟合平面
Kernel::Plane_3 plane1 = PlaneFitting(model, face1);
Kernel::Plane_3 plane2 = PlaneFitting(model, face2);
//计算正交向量,归一化
Kernel::Vector_3 n1 = plane1.orthogonal_vector();
Kernel::Vector_3 n2 = plane2.orthogonal_vector();
CGAL::internal::normalize<FT, Kernel::Vector_3>(n1);
CGAL::internal::normalize<FT, Kernel::Vector_3>(n2);

///输出测试_正交向量值
//std::cout << "这两个平面 " << face1 << " " << face2 << std::endl;
//std::cout << plane1 << " n1 " << n1.x() << " " << n1.y() << " " << n1.z() << " " << std::endl;
//std::cout << plane2 << " n2 " << n2.x() << " " << n2.y() << " " << n2.z() << " " << std::endl;
//std::cout << CGAL::angle(n1, n2) << " " << n1 * n2 << std::endl << std::endl;

//如果两个平面正交向量之间的内积大于阈值,合并平面
if (std::abs(n1 * n2) > std::cos(theta))
{
//std::cout << "这两个平面需要合并 " << face1 << " " << face2 << std::endl;
CGAL::Euler::join_face(h1, model);
merged = true;
break;
}

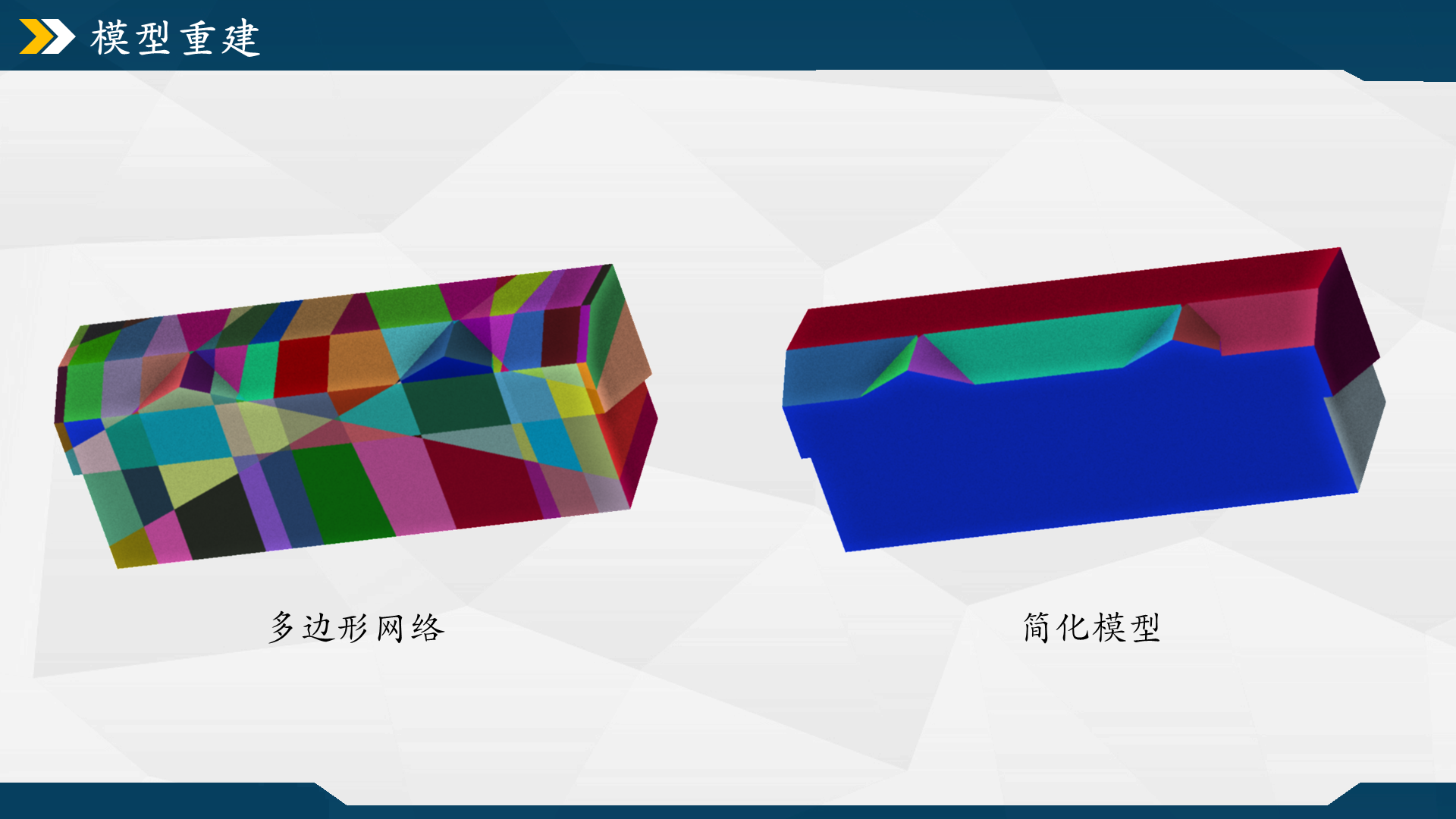

简化后的结果如下。不过在实测一些数据后,发现简化处理过程应该有些问题,可能有的微小面片会被莫名其妙地删去,可能是我把join_face放在循环中连续执行/该方法不适用于合并操作导致的。join_face能进行共面合并的依据来源于stackflow的一篇提问[26]
闭合模型2简化模型

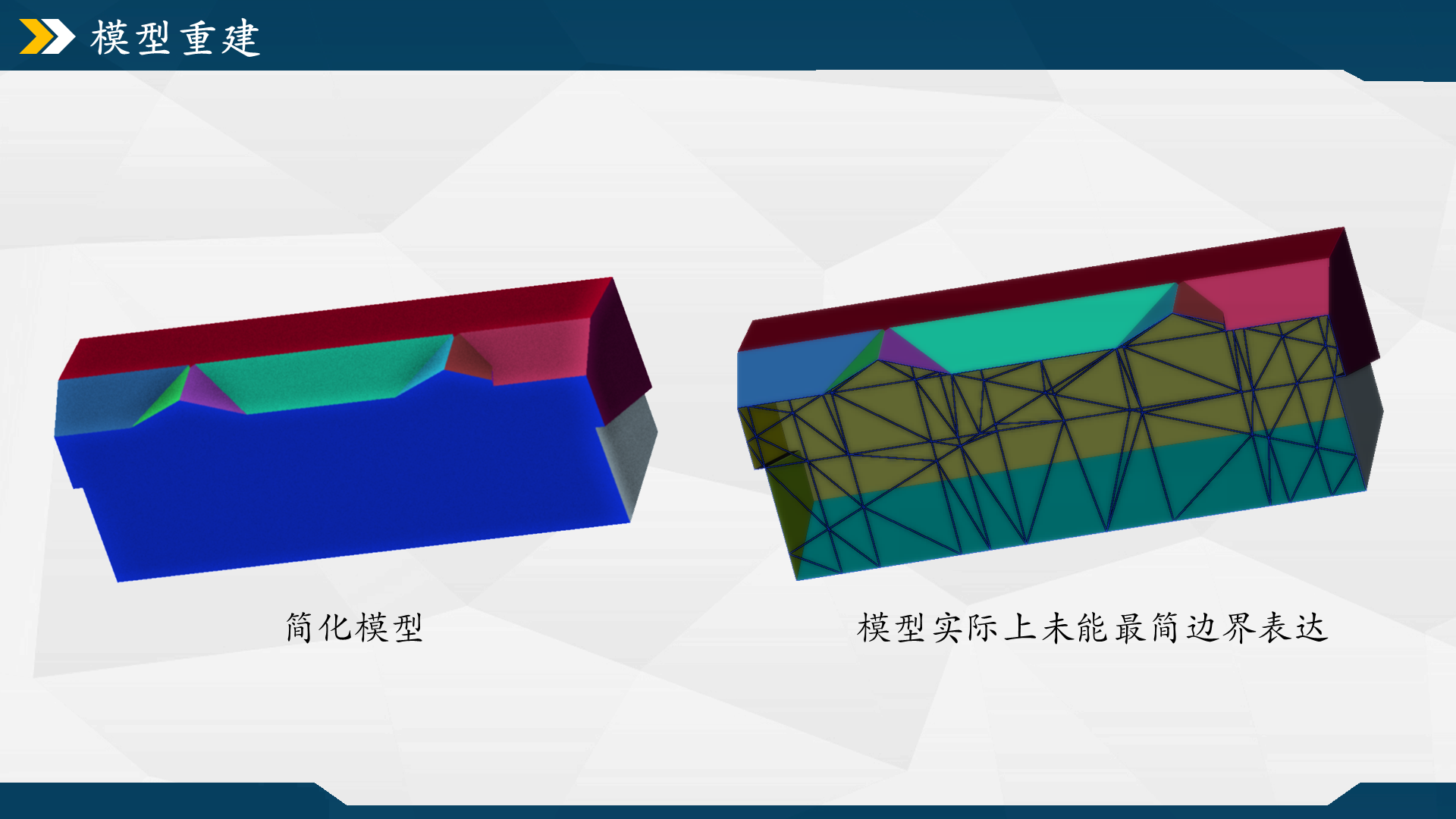

此外,简化操作只是在可视化方面实现了简化,模型实际上未到最简边界表达(最小拓扑和几何复杂度的边界表示),仍还可以进一步做合并,关于这点可以将模型切换到线框模式下观察到。
模型未能最简边界表达

模型导出

模型model的数据类型为CGAL::Surface_mesh<Kernel:: Point_3>,为便于在别的软件中显示,需要把数据以一种通用格式存储到本地。这里采用.obj格式,因为这类格式采用纯文本存储,可以直接用文本编辑器查看和编辑。obj格式一般可以分头部注释和数据块两个部分,注释部分为一行行以“#”开头的注释行,用于写入一些描述性信息,像是创建者、日期、模型简介等;数据块主要包含顶点(vertex)、纹理坐标(texture coordinate)、法向量(normal vector)和面(face)等数据,各个数据块之间按顺序存储,不需要特殊的标识符区分数据区域。
数据导出为obj格式的代码封装在FileProcess::SaveOBJ(),函数先调用std::ofstream打开输出文件流,在头部部分先写入一些注释信息,包括顶点、面和半边的数量。然后是输出顶点列表,每个顶点信息以字母“v”开头,后面跟随顶点的坐标。这里利用vertices(mesh)遍历多边形网络中的所有顶点,调用mesh.point(v)获取顶点的三维坐标。
最后输出面列表,每个面信息以 “f” 开头,后面列出构成该面的顶点索引。每条面数据先用vertices_around_face(mesh.halfedge(f), mesh)遍历面f周围的顶点,再通过get(CGAL::vertex_index, mesh)[v]获取每个顶点的索引。注意obj文件中的索引是从1开始,因此在输出时对索引加1。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
bool FileProcess::SaveOBJ(const std::string & path_output, const std::string & file_name, const CGAL::Surface_mesh<Kernel::Point_3>& mesh)
{
if (mesh.faces().size() == 0)
return false;

//获取时间
//auto now = std::chrono::system_clock::now();//获取当前时间点,使用系统时钟
//std::time_t now_time = std::chrono::system_clock::to_time_t(now);//转换为time_t类型,以便使用传统的时间函数
//std::string timeStr = std::ctime(&now_time);

std::string path_entire = path_output + file_name;
//输出文件.obj
std::ofstream out(path_entire + ".obj");//打开一个输出文件流
//out << "# file written at " + timeStr + "\n";//文件头
out << "# " << mesh.number_of_vertices() << " vertices\n"
<< "# " << mesh.number_of_faces() << " facets\n"
<< "# " << mesh.number_of_edges() << " halfedges\n\n";//顶点、面、边信息

out << "# List of geometric vertices\n";//顶点坐标
for (auto v : vertices(mesh))
out << "v " << mesh.point(v) << "\n";

out << "# List of polygonal face elements\n";
int num_idx = 0;
for (auto f : faces(mesh))
{
out << "f";
for (auto v : vertices_around_face(mesh.halfedge(f), mesh))
out << " " << get(CGAL::vertex_index, mesh)[v] + 1; //面的顶点索引。注意.obj文件中的索引从1开始

out << "\n\n";
}

num_idx = 0;
out.close();// 关闭文件流


return true;
}

设置颜色属性

为了丰富模型的可视化呈现,还可以额外输出一个.mtl文件,它是与.obj文件配套使用的材质库文件,用于描述三维模型中各个材质的属性。也是纯文本格式,便于定义和管理模型的视觉外观。
若要生成带有随机颜色的三维模型,可调用FileProcess::SaveColorOBJ()。函数的第一部分类似SaveOBJ(),也需要先输出一个obj格式的文件,稍有不同的是,紧接在头部注释后面要多加一行以“mtllib”开头的数据块,表明渲染器在加载.obj文件时要同时加载对应的.mtl文件。

1
2
3
4
5
//...

out << "mtllib " + file_name + ".mtl\n\n";//设置引用的.mtl文件

//...

在生成obj文件后,接着去生成材质库文件mtl。先通过newmtl关键字声明一个新材质,并为其指定一个名称“color + num_idx”。然后设置三条基本的材质属性,分别是环境光Ka、漫反射Kd和镜面反射Ks,它们分别定义材质在环境光、直射光下的颜色,以及材质的高光颜色。这里Ka和Kd设置随机颜色,Ks按喜好取了个不那么刺眼的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
//2、输出文件.mtl
std::ofstream out_mtl(path_entire + ".mtl");//打开一个输出文件流
for (const Polygon_mesh::Face_index& f : faces(mesh))
{
out_mtl << "newmtl color" << num_idx << "\n";//定义材质
num_idx++;

CGAL::Color c = CGAL::Color(rand() % 256, rand() % 256, rand() % 256); //生成随机颜色
out_mtl << "Ka " << c.red() / 255.0 << " " << c.green() / 255.0 << " " << c.blue() / 255.0 << "\n"; //环境反射颜色,范围为[0,1]
out_mtl << "Kd " << c.red() / 255.0 << " " << c.green() / 255.0 << " " << c.blue() / 255.0 << "\n"; //漫反射颜色,范围为[0,1]
out_mtl << "Ks " << 0.200000 << " " << 0.200000 << " " << 0.200000 << "\n"; //镜面反射颜色,范围为[0,1]
//out_mtl << "Ks " << c.red() / 255.0 << " " << c.green() / 255.0 << " " << c.blue() / 255.0 << "\n";//耀眼的金属反光

out_mtl << "\n\n";
}

out_mtl.close();// 关闭文件流

除了这三个属性,还有别的像透明度(Dissolve)、光泽度(Specular Exponent)、纹理映射等属性可供设置,以后有需要再问问GPT。
